Z-box storage container
Our Z-Box is designed by self storage experts to be outdoors 365 days a year. The durable and well-secured containers look neat, are easy to use and come in six different models. Ranging from containers with one central access door to containers with as many as eight doors. As a result, they can be completely divided into different compartments that can be easily separated from each other.
The Z-Box storage container is ideal if you are looking for ways to offer multifunctional outdoor storage to your customers.
Z-Box models
Model 1
Sizes and weights
Outsized incl. Roof
Width: 2.42m
Depth: 5.87m
Height: 2.41m
Number of m²: 14.2m²
Number of m³: 34.2m³
Inside size
Width: 2.28m
Depth: 5.72m
Height: 2.23m
Number of m²: 13.0m²
Number of m³: 29.1m³
Weight
Empty: 1410kg
Load capacity: 4535kg
Sizes and weights
Outsized incl. Roof
Width: 2.42m
Depth: 5.87m
Height: 2.41m
Number of m²: 14.2m²
Number of m³: 34.2m³
Inside size
Width: 2.28m
Depth: 5.72m
Height: 2.23m
Number of m²: 13.0m²
Number of m³: 29.1m³
Weight
Empty: 1650kg
Load capacity: 4535kg
Inner size per compartment (2x)
Width: 2.28m
Depth: 2.86m
Height: 2.23m
Number of m²: 6.5m²
Number of m³: 14.5m³
Sizes and weights
Outsized incl. Roof
Width: 5.87m
Depth: 2.42m
Height: 2.41m
Number of m²: 14.2m²
Number of m³: 34.2m³
Inside size
Width: 5.72m
Depth: 2.28m
Height: 2.23m
Number of m²: 13.0m²
Number of m³: 29.1m³
Weight
Empty: 1775kg
Load capacity: 4535kg
Inner size per compartment (2x)
Width: 2.86m
Depth: 2.28m
Height: 2.23m
Number of m²: 6.5m²
Number of m³: 14.5m³
Sizes and weights
Outsized incl. Roof
Width: 5.87m
Depth: 2.42m
Height: 2.41m
Number of m²: 14.2m²
Number of m³: 34.2m³
Inside size
Width: 5.72m
Depth: 2.28m
Height: 2.23m
Number of m²: 13.0m²
Number of m³: 29.1m³
Weight
Empty: 1805kg
Load capacity: 4535kg
Inner size compartment l.
Width: 1.52m
Depth: 2.28m
Height: 2.23m
Number of m²: 3.5m²
Number of m³: 7.7m³
Inner size compartment m.
Width: 1.45m
Depth: 2.28m
Height: 2.23m
Number of m²: 3.3m²
Number of m³: 7.4m³
Inner size compartment r.
Width: 2.66m
Depth: 2.28m
Height: 2.23m
Number of m²: 6.1m²
Number of m³: 13.5m³
Sizes and weights
Outsized incl. Roof
Width: 5.87m
Depth: 2.42m
Height: 2.41m
Number of m²: 14.2m²
Number of m³: 34.2m³
Inside size
Width: 5.72m
Depth: 2.28m
Height: 2.23m
Number of m²: 13.0m²
Number of m³: 29.1m³
Weight
Empty: 1835kg
Load capacity: 4535kg
Inner size compartment l.
Width: 1.49m
Depth: 2.28m
Height: 2.23m
Number of m²: 3.4m²
Number of m³: 7.6m³
Inner size compartment lm.
Width: 1.37m
Depth: 2.28m
Height: 2.23m
Number of m²: 3.1m²
Number of m³: 7.0m³
Inner size compartment rm.
Width: 1.37m
Depth: 2.28m
Height: 2.23m
Number of m²: 3.1m²
Number of m³: 7.0m³
Inner size compartment r.
Width: 1.49m
Depth: 2.28m
Height: 2.23m
Number of m²: 3.4m²
Number of m³: 7.6m³
Sizes and weights
Outsized incl. Roof
Width: 5.87m
Depth: 2.42m
Height: 2.41m
Number of m²: 14.2m²
Number of m³: 34.2m³
Inside size
Width: 5.72m
Depth: 2.28m
Height: 2.23m
Number of m²: 13.0m²
Number of m³: 29.1m³
Weight
Load capacity: 4535kg
Inner size compartment l.
Width: 1.49m
Depth: 1,13m
Height: 2.23m
Number of m²: 1,7m²
Number of m³: 3,8m³
Inner size compartment lm.
Width: 1.37m
Depth: 1,13m
Height: 2.23m
Number of m²: 1,5m²
Number of m³: 3,5m³
Inner size compartment rm.
Width: 1.37m
Depth: 1,13m
Height: 2.23m
Number of m²: 1,5m²
Number of m³: 3,5m³
Inner size compartment r.
Width: 1.49m
Depth: 1,13m
Height: 2.23m
Number of m²: 1,7m²
Number of m³: 3,8m³
Standard dimensions (l*w*h) 5.87 x 2.42 x 2.41m.
When purchasing multiple containers, the size and color of the Z-Box can be customized to your needs. Labeling, power connection and installation of solar panels on the Z-Box are also among the options. The Z-Box is available in several models, each with a different configuration. This creates the opportunity to optimize the layout of your storage yard, and therefore achieve the highest possible return for your outdoor area.
Come and see in Deventer
You are welcome to come and see all our models and setups in Deventer, where we will of course provide you with expert explanations. You can make an appointment without any obligation. We look forward to seeing you!
Specifications
– Fully insulated
– Ventilated
– Free of condensation
– Divisible into several units
– Well-secured
– Pest-free
– Easy transport with BE licence
– Weatherproof
– Easy and quick to build
– Foldable and stackable
– Easy to move with forklift truck
User-friendly access

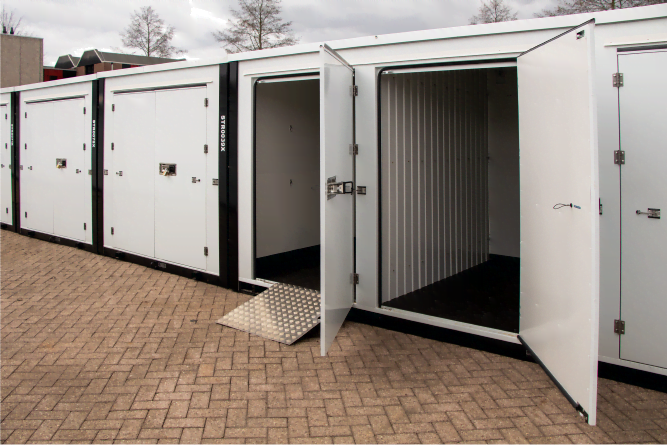

Z-Box doors are easy to use. Ease of use was therefore factored into the design of our Z-Box container. With its innovative design, accessing stored contents is as easy as unlocking the lock, and opening the door.
See in the illustration how the door system works.
